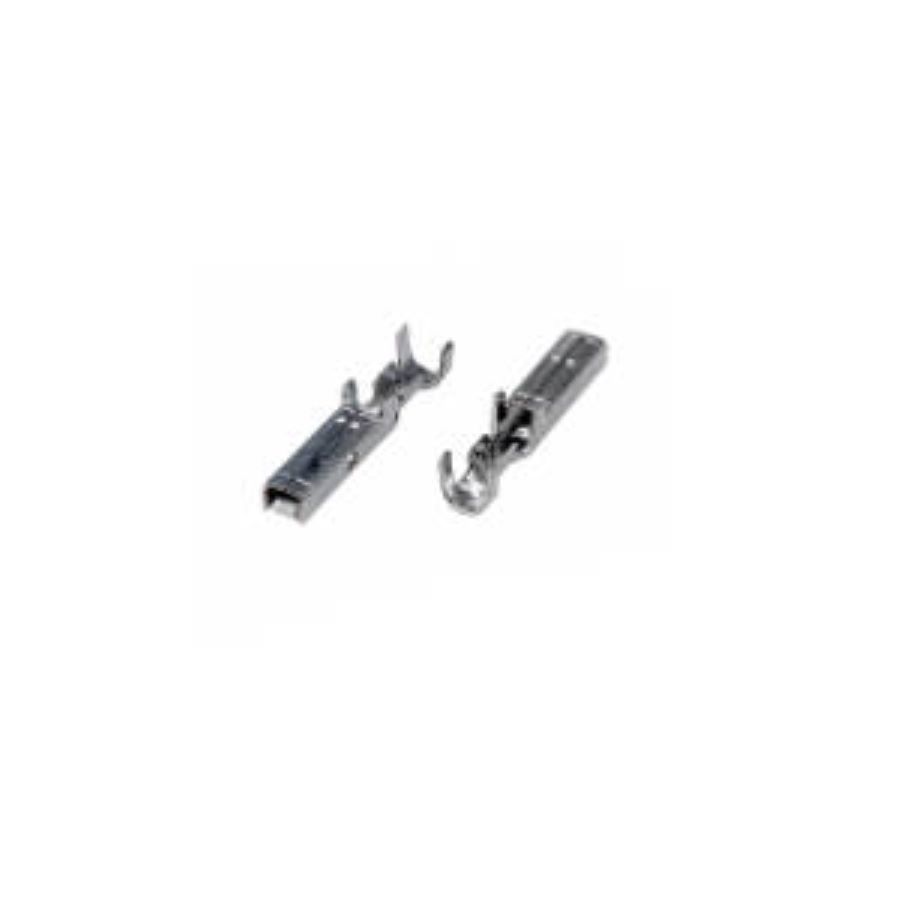

1-175217-5
Manufacturer:
TE Connectivity
Mfr.Part #:
1-175217-5
Datasheet:
Description:
Terminals Through Hole 20 AWG to 24 AWG Receptacle
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 3.6 mm |
| Packaging | Bulk |
| Depth | 3.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 3.81 mm |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Receptacle |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 20 AWG to 24 AWG |
| Insulation | Non-Insulated |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Current Rating | 15 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 24 AWG |
| Insulation Diameter | 2.6 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Contact Retention | With |
Stock: 14912
Distributors
pcbx
pcbxUnit Price$0.25648
Ext.Price$0.25648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25648 | $0.25648 |
| 10 | $0.25563 | $2.55630 |
| 25 | $0.22997 | $5.74925 |
| 50 | $0.22435 | $11.21750 |
| 100 | $0.21886 | $21.88600 |
| 300 | $0.20744 | $62.23200 |
| 500 | $0.19662 | $98.31000 |
| 1000 | $0.18637 | $186.37000 |
| 3000 | $0.17184 | $515.52000 |
